Thiết bị báo mức

Technical specifications

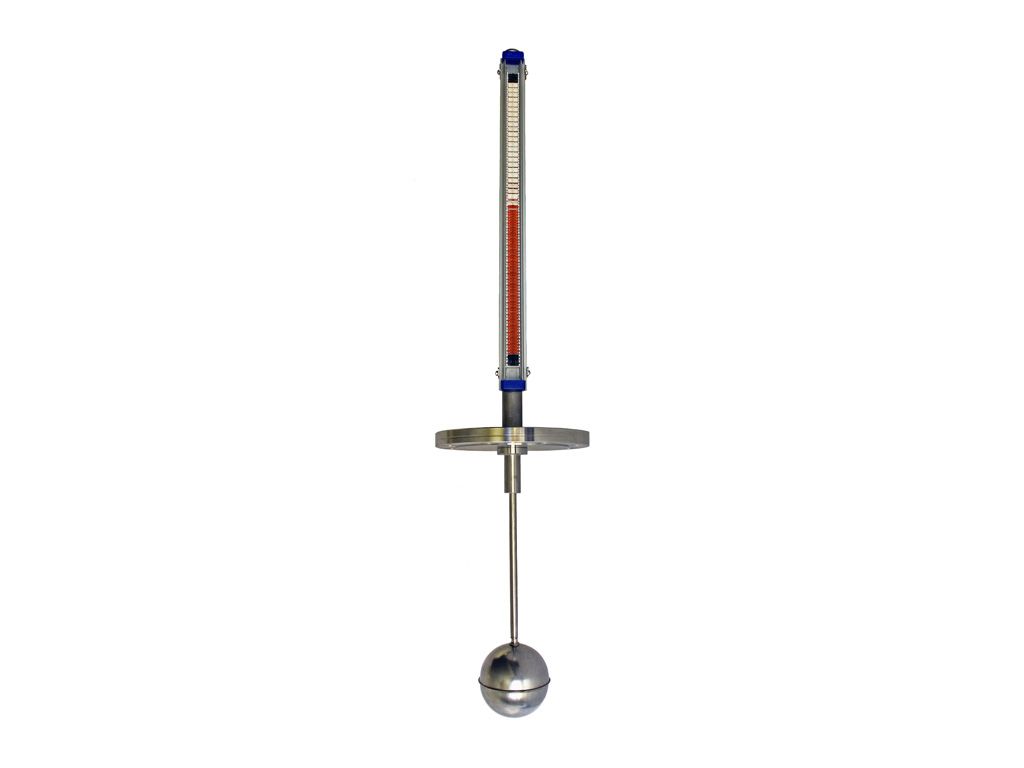

Local indication by means of magnetic strips or external float in a glass tube

Measuring range
150 mm … 15 m (depending on manufacturing material)
Accuracy : ±4 mm

Connections
EN 1092-1 or ANSI flanges
BSP or NPT thread fittings
Other flanges and connections on request
Tank top mounted

Materials
EN 1.4404 (AISI 316L)
Others on request

Options
Adjustable limit switches
4-20 mA analog output, Ex version on request
HART ™, PROFIBUS, FIELDBUS protocols available on request
