Bộ đo mức siêu âm

Bộ đo mức chất lỏng bằng sóng siêu âm:

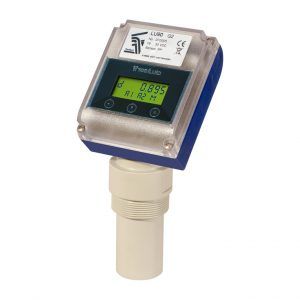

Ultrasonic level transmitter and indicator for liquids and solids

No contact with the product
Compact design with polycarbonate housing (electronics
and display). Remote display available on request
Very good resistance in corrosive environments, outdoors
applications,...
Easy to program by means of keyboard-display
Level indication with automatic compensation of
temperature changes
Low power consumption
Measuring range:
- Liquids:
- Model LU91: 0.30 ... 6 m
- Model LU921: 0.30 ... 5 m
- Model LU93: 0.45 ... 12 m
- Model LU923: 0.45 ... 10 m
- Solids:
- Model LU91: 0.30 ... 3.5 m
- Model LU921: 0.30 ... 2.5 m
- Model LU93: 0.45 ... 7 m
- Model LU923: 0.45 ... 5 m
Accuracy: ±2 mm (between 0.3 and 2 m)
Connections:
- Models LU91 / LU921: G2 thread
- Models LU93 / LU923: G2½ thread
Others on request
Materials: PP, PVDF
Continuous level measurement, with 4-20 mA output
Maximum-minimum level alarms, in 4-wire version (Models
LU91 and LU93)
Optional: HART communication protocol
Level transmitters
and indicators
Series LU
