  • Cảm biến đo mức
  • Giá:
    Liên hệ
  • Xuất xứ:
  • Lượt xem:
    13434

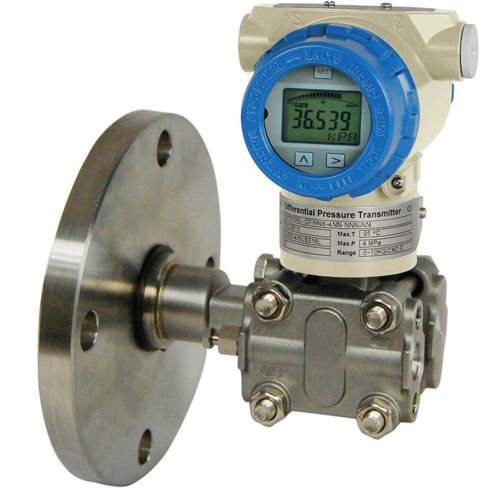

Bô đo mức bồn bể ADP900LNT series is a digital differential pressure transmitter designed for industrial level measurement applications. The ADP900LNT can be configured to provide intergrated solutions for a broad range of pressure and flow measurement applications.
ADP900NT series is a digital differential pressure transmitter designed for industrial pressure measurement applications.
The ADP900NT can be configured to provide integrated solutions for a broad range of pressure and flow measurement applications.

FEATURES



 Updating time of output current in 200 ms
 Improved performance, increased accuracy and greater stability
 Two years stability of 0.2%
 0.075% accuracy
 Parameter setting by keypad directly
 4-20 mA output plus direct digital  HART communication
 Automatic zero calibration by press-button
 Explosion proof and weather proof housing


SPECIFICATION




Process Fluid: Display:
Liquid, Gas of Vapor 5 Digits programmable & 0-100% Bargraph
Application: Display Unit:
Liquid Level, Differential Pressure, Standard 22 different engineering unit
Gauge Pressure, Absolute Pressure 5 Digits programmable for special unit
Measuring Range: Keyboard:
0 - 6.2 Kpa ~  0 - 37 Kpa ( Minimum ) 3 internal keys for programming
0 - 4.0 Mpa ~  0 - 25.0 Mpa ( Maximum ) and output setting
Turndown Ratio: Current Output:
1 : 100 4 - 20 mA 2 wires with Hart Signal
Accuracy: Load
+/- 0.075% of span Rohm=(Vdc-9)*50
Stability: Power Supply:
+/-0.15% of URL for 2 years 9 - 36 VDC
Working Temperature: Digital Communication:
-40 to +250 oC Hart Protocol
Max. Pressure: Damping:
40 Mpa (Dependent on flange rating) 0 - 32 seconds
Material: Response Time:
Flange/Adapter 200 mS
Carbon Steel / Stainless Steel 304 / Turn on Time:
Stainless Steel 316  2 Seconds with minimum damping
Diaphragm Zero Calibration:
Stainless Steel 316L / Hastelloy B / Automatic calibration by push-button
Hastelloy C / Monel / Tantalum Cable Entry:
Bolts & Nuts 1/2" NPT( Female ) / M20 Conduit Threads
Carbon Steel / Stainless Steel 316 Temperature Effect:
Name / Tag Plate +/-0.18% of span per 20 oC
Stainless Steel 304 / Stainless Steel 316 EMI/RFI Effect:
Converter Housing Follow SAMA PMC 33.1 from 20 to 1000
Low copper cast aluminum alloy with MHz and for field strengths up to 30 V/m
polyurethane, light blue paint Process connection:
Fill Fluid High Pressure Side
Silicone / High Temperature Silicone 1-1/2", 2", 3", 4" Flanges
Fluorine Oil / Vegetable Oil ANSI / DIN / JIS / Tri-Clamp
Protection Class: Extended Diaphragm
IP67 ( Standard ) 2", 4", 6" length
Intrinsically Safe EEx ia IIC T5 ( Standard ) Low Pressure Side
Explosion proof Ex D IIB T5 1/4 - 18 NPT , 1/2 - 14 NPT
  Ambient Temperature:
  -25 to +85 oC
  Dimensions:
  102 mm (W) * 188 mm (H) * 189 mm (D)
  Weight:
  8 - 15 Kg
