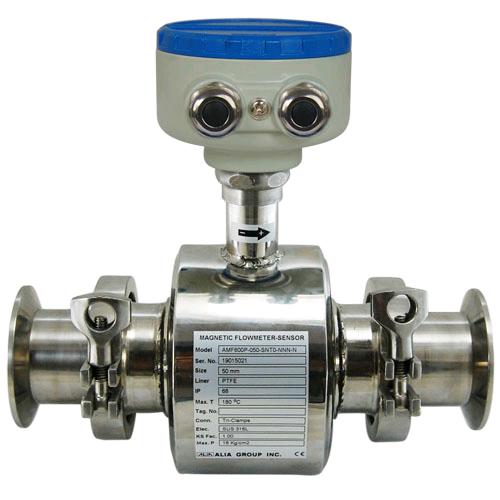

AMF601NT Series is a sanitary type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 25mm to 100 mm. The AMF601 is widely used for drink water, milk, food & beverage juice and many other industrial fluid. AMF601 Series electromagnetic flowmeter could be used in compact or separate model with AMC Series converter of electromagnetic flowmeter.
FEATURES



 Light and compact version
 Flow Velocity range: 0-12 m/s, precise in low flow applications
 IDF Tri-Clamp or Union screw Connection
 Excellent for high pressure application
 Protection class: IP68 available; sensor submersible
 PTFE Liner is suitable for vacuum tube
 High accuracy of +/-0.4% value of reading (or+/-0.2% value of reading)
 With Forward / Reverse flowrate measurement function


SPECIFICATION


Size: Cable Entry:
25, 32, 40, 50, 65, 80, 100 mm Standard :PG11  Option:1/2"NPTF
1", 1-1/4", 1-1/2", 2", 2-1/2", 3" , 4" Ambient Temperature:
Measuring Range:
-25 to +60 oC
Velocity   0-0.25 m/s min. Process Connection:
                0-12 m/s max. IDF Tri-Clamp
Material: Union Screw
Tube & Connection Grounding Resistance:
Stainless Steel 304 or 316 Must be  less than 10
Coil Housing Accuracy:
Stainless Steel 304 (Standard) +/-0.5% reading (Velocity >=0.5m/s)
Stainless Steel 316 (Option) +/-0.2% reading
Liner (Suitable for AMC3100 converter only)
PTFE +/-0.0025 m/s (Velocity < 0.5 m/s)
Electrode Temperature:
Stainless Steel 316L
-40 to +150 oC
Hastelloy B Max. Pressure:
Hastelloy C 10 Kg/cm2 (Standard)
Titanium 40 Kg/cm2 (Option)
Tantalum Explosion Proof:
Tungsten Carbide Exd(ib)ibqIIBT5
Platinum (with AMC3100 only)
Protection Class:
Junction box IP67, Body IP68
IP68 (Submersible)
Conductivity:
More than 5 uS/cm
