Measuring forces plays a major role in many industrial applications. Whether product quality assurance, automation technology or material-testing equipment, SIKA provides a sensor to suit practically any application. We will work together with you on finding a sensor to suit your application depending on the maximum force that can be applied, direction of stress, the accuracy required or other factors. • Outlet pressure 0,3÷2,5 bar / 4,5÷37 psi • Inlet and/or outlet pressure gauges • Threaded or flanged connections (on request)

Load cells



All SIKA sensors are based on strain gauges in a full-bridge circuit. The sensors are designed to supply a measurement bridge signal of 2 mV / V as an output signal. The connection type is 4-wire; we can supply almost all versions with a 6-wire connection if required. Selected sensors are available with an integrated measurement amplifier and output signals 4…20 mA, ±5 V or ±10 V as options. In addition, we offer battery-powered sensors with wireless measurement data transfer in the 433 MHz range.

  • Most load cells correspond in their design to the international OIML-R60 regulation

On request, we can also produce all load cells with the output signal as force (N / kN) or force sensors with the output signal as weight (kg / t). In this case, the sensor no longer conforms to the ISO 376 standard or OIML-R60. Instead, we indicate the error limits as a percentage.





Bending beam load cell type FF1

  • Maximum capacity
    2.5 kg to 200 kg
  • Load transfer direction
    Compression
  • Accuracy class
    C2 (2.5 to 200 kg)
    C3 (10 to 200 kg)







Shear beam load cell type FFT1

  • Maximum capacity
    350 kg to 500 kg
    1 t to 7.5 t
  • Load transfer direction
    Compression
  • Accuracy class
    C2
    C3

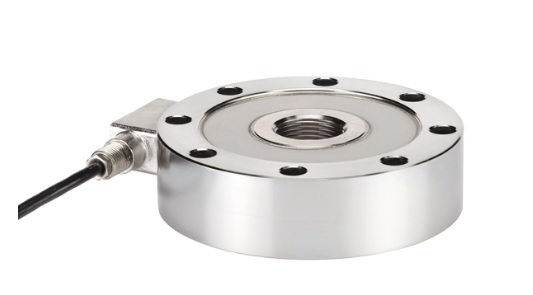

Sensor for tensile and compressive load type FTCE

  • Maximum capacity
    300 kg to 500 kg
    1 t to 20 t
  • Load transfer direction
    Compression and tension
  • Linearity
    ≤ ±0.030 %
  • Hysteresis
    ≤ ±0.030 %







Sensor for tensile and compressive load type FTS

  • Maximum capacity
    10 kg to 500 kg
    1 t to 7.5 t
  • Load transfer direction
    Compression and tension
  • Accuracy class
    C2 (10 to 500 kg / 1 to 7.5 t)
    C3 (10 to 500 kg / 1 to 7.5 t)
    C4 (500 kg / 1 to 2.5 t)






Sensor for tensile and compressive load type FTCA

  • Maximum capacity
    1 kg to 50 kg
  • Load transfer direction
    Compression and tension
  • Linearity
    ≤ ±0.030 %
  • Hysteresis
    ≤ ±0.030 %






Heavy-load cell type FD200

  • Maximum capacity
     20 t to 100 t
  • Load transfer direction
    Tension
  • Combined error
    ≤ 0.100 %








Sensor for compressive load type FC2S

  • Maximum capacity
    100 kg to 500 kg
    1 t to 200 t
  • Load transfer direction
    Compression
  • Accuracy class
    C1
    C2
    C3







Sensor for compressive load type FCBS

  • Maximum capacity
    250 kg to 500 kg
    1 t to 100 t
  • Load transfer direction
    Compression
  • Combined error
    ≤ ±0.030 %











Platform load cell type FFT6

  • Maximum capacity
    5 kg to 100 kg
  • Load transfer direction
    Compression
  • Accuracy class
    C2
