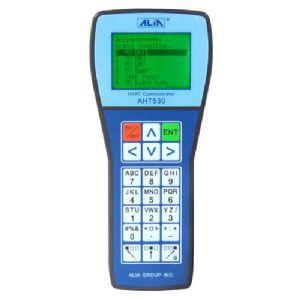

AHT53NT Series AHT53NT is a battery-powered, hand-held unit designed to configure, calibrate and troubleshoot to smart transmitter either remotely or nearby. AHT530 allows you to establish communication with a Hart field instrument over the existing 4-20 mA DC lines, covering the five process variables of flow, pressure, temperature and level, control valve etc.
FEATURES



 Common to most smart field Instruments
 AA alkaline batteries or rechargeable battery available
 Battery operation time more than 100 Hours
 Low battery alarm
 Self-check function / Automatic power-off
 Large display (21 characters by 8 lines)
 Microprocessor-based field communicator
 USB port to charge


SPECIFICATION


Display: Power:
LCD dot matrix, 21 characters * 8 lines Battery
Keyboard: Three AA alkaline Batteries
20 general keys, one power switch Three Ni-MH Batteries (Rechargeable)
Signal Connection: Operable Time
Alligator clip or grabber clip Alkaline Battery: Up to 150 Hours
Cable Length Ni-MH battery: Up to 100 Hours
1.5 M Charge up time
Function: Less than 12 Hours
Display, setup and alteration of parameter Dimensions:
Zero point adjustment, calibration 231mm(L) x 102mm(W) x 61mm (H)
Auto power-off Battery Charger:
Communication Line: USB connect with computer
Line length 90-260 VAC, 50/60 Hz
Up to 1500 M Weight:
Load Resistance 0.4Kg (Communicator)
250 to 600 ohm 1 Kg (Including accessories)
Load Capacitance Standard Package:
Less than 0.22 uF  ATH530 Hart Communicator * 1set
Load Inductance Communication cable 1.5m * 1 pair
Less than 3.3 mH  USB connector 1.5M (Charge) * 1 set
Power Consumption: Ni-MH Battery 1.5V * 3 pcs
191.3mA (Working state) Power Adapter 90-260Vac * 1 set
1uA (Power-off state) Alligator Clip * 1 pair
Material: Grabber clip * 1 pair
Case Shoulder bag * 1 set
ABS resin
Keyboard
Polycarbonate
Protection Class:
IP54
Operating Temperature:
-20 oC ~ 55 oC
Storage Temperature:
-20 oC ~ 65 oC
Ambient Humidity:
90% RH or less
