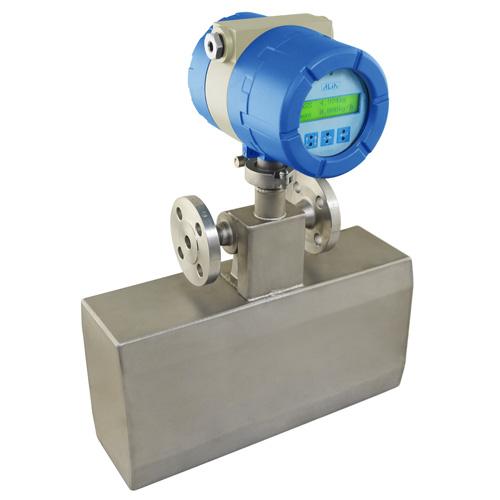

Coriolis flow meters ACF600NT Series

HỖ TRỢ
Mr.Nam
0903999832
Hotline
0969055593
Phòng KT
02838 636 919
Sales1
0935006453
Sales2
0907792659
THỐNG KÊ
  •    Đang online: 14
  • Lượt truy cập: 1324278
SẢN PHẨM
  • Coriolis flow meters ACF600NT Series
  • Giá:
    Liên hệ
  • Xuất xứ:
    USA
  • Lượt xem:
    27085
ACF600NT Series uses the Coriolis effect as a technique for liquid mass flow measurement. The ACF600NT can measure most of the liquids; the infrared light sensor makes it easy for you to set parameters & change the display data. The Double-C tube & Double-D Tube make it possible for the meter to be used in most liquid applications.
FEATURES



 Can be programmed by infrared light sensor without opening cover
 High turndown ratio of flow rate
 It comes any flanges such as ANSI, DIN, JIS... etc
 Excellent for high pressure application
 Simple for installation, commission and maintenance
 Self-diagnostic capabilities, cable faults, pipe vibration
 High accuracy of +/-0.2% of reading (or +/-0.1% of reading)
 With forward / reverse flow rate measurement function


SPECIFICATION


Sensor Type: Display:
C tube (10-40mm) / U tube (50-150mm) 2 lines LCD with illumination
Size: Flow Rate Unit
10mm ~ 200 mm (3/8" ~ 8") g/s, Kg/min, kg/Hr, T/Hr, 5 Digit
Flow Range: Density Unit
0 - 1000 Kg/Hr ~ 0 - 1106000 Kg/Hr Kg/m3, g/cc, 5 Digit
Accuracy: Totalizer Unit
+/-0.2% +/-ZS of reading (Standard) g, Kg, Ton, L, M3, 11 Digits
+/-0.1% +/-ZS of reading (Optional) Temperature
Repeatability: oC,  oF, 4 Digits
+/-0.03% +/-ZS of reading Keypad:
Density Range: 3 keys from Internal setting + Infrared light
200 - 2300 Kg/M3 (0.2 - 2.3 g/cm3) Sensor, can be programmed without
Accuracy Opening the cover
+/-0.002 g/cm3 Turndown Ratio:
Temperature Range: 20  : 1
-40 oC ~ +125 oC (Standard) Damping:
-40 oC ~ +250 oC (Optional, Separate Only) 0.01 To 1.0 Seconds
Material: Low Flow Cutoff:
Wetted Parts 0.0% ~ 9.0%
Stainless Steel 316L Communication:
Flange RS485 (Modbus Protocol)
Stainless Steel 316L Hart Signal (Optional)
Sensor Housing Current Output:
Stainless Steel 304 4-20 mA (Isolated)
Junction Box Load
Aluminum Alloy (Epoxy Paint) Max. 750
Process Connection: Output Unit
Flange  Mass / Volume / Density / Temperature
Flange Type: Pulse (Alarm) Output:
JIS 10K / JIS 20K / JIS 40K Open Collector
ANSI 150# / ANSI 300# / ANSI 600# Rating
DIN PN 10 / PN 16 / PN25 / PN 40 3-30Vdc, 50mA Max.
Protection Class: Power Supply:
IP 67 90-260 VAC, 50/60 Hz  or 24 VDC +/-10%
Explosion Proof Exde (ib) IIC T6 (Optional) Power Consumption:
Installation: 30 - 40 W (Depend on sensor size)
Compact or Separate Cable Entry:
Signal Cable Length: Sensor to Converter- 3/4" G
10M - 100M Signal output / Power supply- M20
  Ambient Temperature:
  -40 oC to +60 oC
  Max. Pressure:
  63 Kg/cm2
