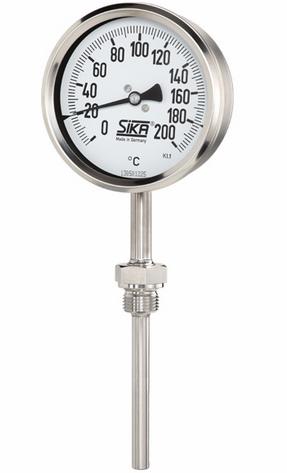

  • Dial thermometers types 341 - 347
  • Giá:
    Liên hệ
  • Xuất xứ:
  • Lượt xem:
    2070
Đo nhiệt độ SIKA GERMANY Housing crimped-on ring case Measuring system Nitrogen filled Accuracy Class 1 Nominal sizes 63, 80, 100, 160 mm Measuring range 80 bis 600 K

Diesel engine dial thermometers
This range of instruments includes special precision dial
thermometers optimised for marine engines, based on the
nitrogen gas expansion principle.
Typical applications
Cooling water
Turbo charged air
Lubricating oil
Exhaust gas
Diesel engine thermometers – Quality lasts longer
A problem to all Diesel engines is vibration, which reduces the
life time of mechanical thermometers. SIKA has overcome
this problem with their Diesel engine thermometer. This
thermometer has a special mechanical sensor design,
optimised for the use at marine engines. Furthermore, the
case contains a shock absorbing liquid of high viscosity, which
protects the internal meter movement against heavy vibration
and at the same time lubricates internal parts and avoids
corrosion. SIKA Diesel Engine Thermometers therefore last
longer than many others.
Technical data

Display range* 0...100 °C
0...120 °C
0...160 °C
0...250 °C
50...650 °C
Nominal size, material 63, 80 or 100 mm, stainless steel 1.4301
Dial White, black markings (up to 250 °C)
Silver coloured, black markings (above 250 °C)
System Nitrogen filled system
Immersion tube Stainless steel
Standard immersion tube lengths (l1) 100, 135, 160, 200, 250, 300, 400 mm
Thread connection Adjustable compression fitting
Thread size G½, G¾
Accuracy (EN 13190) Class 1.0
Approval Approved by Germanischer Lloyd, Certificate No. 12 026-98 HH

* Dual scale °C and °F available on request
Local reading dial thermometers
