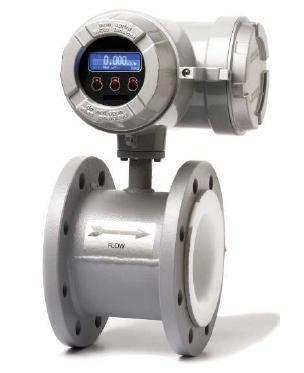

Đồng hồ đo lưu lượng kế điện từ
TECHNICAL FEATURES
The meter size is available from DN4 up to DN1000.
EM meter internal lining is PTFE or hard rubber (from DN150 to DN1000) and standard electrodes are AISI 316L stainless steel.
For corrosion resistance, electrodes can be on request Titanium, C22, Tantalum...
Accuracy: ± 0.5% r.v.
Repeatability: ± 0.1% r.v.
Max pressure: 16/10 bar (higher on request)
Max fluid temperature Integral electronic: 75°C Remote electronic: 160°C DIFLEX coating / 130°C PTFE coating / 80°C Hard Rubber coating
Temp. max lavaggio T=150 °C (con vapore), per un periodo di tempo di 45 minuti con rivestimento in PTFE o DIFLEX
Max washing temp. With PTFE or DIFLEX coating T=150°C with steam for a max period of 45 min
Connections: flanged UNI EN 1092-1, other connections on request
Measuring tube: AISI 304 covered with epoxy painted carbon steel cover.
Fluid : Suitable for conductive liquids min 5 µS/cm
Comunication protocol HART on request
