| Measuring Principle: |
Process Temperature: |

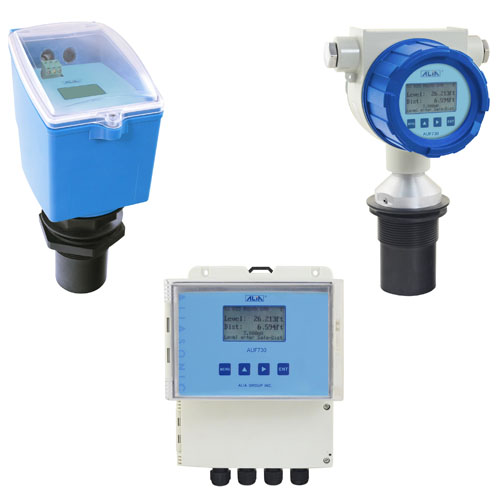

| Ultrasonic Level Measurement |
-40 ~ +60 oC(Standard) |
| Measuring Range: |
-40 ~ +100 oC(Optional) |
| 0-10 Meter, 0-15 Meter, 0-20 Meter |
Process Pressure: |
| 0 -33 Ft, 0 - 50 Ft, 0 - 65 Ft |
-0.8 ~ +2.0 BarG |
| Display: |
Max. Cable Length: |
| 4 Line LCD with Bargraph (Illumination) |
50 Meter (Separate Version) |
| Resolution: |
Power Supply: |
| 1 mm / 0.003 Ft |
12-36VDC, 2 wires (Compact) |
| Accuracy: |
12-36VDC / 85-260AC, 4 wire (Separate) |
| +/-0.25% of Full Scale |
Power Consumption: |
| Repeatability: |
Less than 3W |
| +/-0.1% of reading |
Output: |
| Material: |
4-20 mA |
| Ultrasonic Tube |
Load |
| ABS |
Rohm=(Vdc-12)*50  |
| Sensor Head |
Alarm: |
| Polyurethane (Standard) / ETFE / PTFE |
High/Low/High-High/Low-Low (Separate) |
| Housing |
Communication: |
| ABS or Aluminum Alloy (Weather Proof) |
RS485 Modbus, 4 Wire only (Standard) |
| Aluminum Alloy (Explosion Proof) |
Hart Signal (Optional) |
| Update Time: |
Temp. Compensation: |
| < 3 S |
Built-in to compensate over temperature |
| Ambient Temperature: |
range |
| -20 ~ +60 oC |
Data Storage: |
| Relative Humidity: |
Operation parameters and totalization |
| 0 - 100% RH |
date are stored by EEPROM for more |
| Sensor Frequency: |
than 10 years |
| 40KHz / 1KHz |
EMI/RFI Effect: |
| Blanking Distance: |
Follow SAMA PMC 33.1 from 20 to 1000 |
| 0.35 M Max. |
MHz and for field strengths up to 30 V/m |
| Bean Angle: |
Dimensions: |
| 6o |
Compact (ABS) |
| Keypad: |
105mm(W)*262mm(H)*168mm (D) |
| 4 Key with tactile action |
Compact (Aluminum) |
| Response Time: |
161mm(W)*247mm(H)*132mm (D) |
| Less than 1 second |
Separate (ABS) |
| Protection Class: |
183.5mm(W)*218mm(H)*125.5mm (D) |
| IP65(ABS) / IP67(Aluminum Alloy) |
Weight: |
| Explosion Proof, EX d (ia) II B T4 |
1.0Kg /2.2kg (compact), 2.2 Kg (Separate) |
| Installation: |
|
| G 2"and 20m sensor is M70*2 Standard |
|
| Flange end (Optional) |
