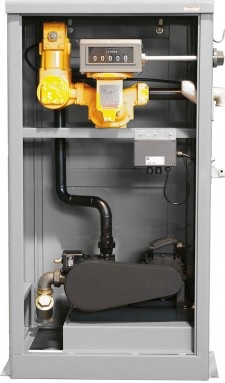

Đồng hồ đo lưu lượng dầu xăng dầu

STM High flow 200·300·500 or 1,000 l/min Mechanical · ±0.3 %

Liquids: Diesel Diesel  Petrol Petrol

USE

  • Supply kit for the high flow fuel supply suitable for the diesel, petrol and kerosene installations
  • Designed for a “heavy duty use”.



Composed of:

CHASSIS:

  • Made of steel. Brilliant epoxid paint finish · Weatherproof
  • It has built in an anchorage base.

PUMP:

  • BDP · self-suction vane pumps of high flow, self-suction, positive displacement, constant flow, noiseless and heavy-duty
    • Flow: 200 l/min (other available models up to 1,000 l/min)
    • Certificate: ATEX EExd IIBT4
    • Working pressure: 3 to 5 bar
    • Motor: 2.2 kW 230/400 VAC · II2G EExd IIC T5 with ATEX certificate ATEX · triphase · F Class · 2,860 rpm · IP-55 protection

METER:

  • Volumetric mechanical meter with degasifier in order to avoid the gas measuring
  • Accuracy ±0.3 % · Repetitivity: ≥0.05 %
  • Manual reset
  • Calibration system
  • High accuracy and repetitiviy on the wide range of flow and high accuracy with constant flow
  • Low maintenance, without metallic contact in the measuring chamber, long life service
  • Aluminium body, Viton joints, litre register. Available in gallons.
  • It is also available the pulser version.
  • It includes a filter with a mesh of 170 or 400 μm (micron)



It is supplied with:

  • 4 m delivery diesel hose of double layer with couplings in both ends
  • PA-250 · Automatic nozzle

STM-200 · HIGH FLOW MECHANICAL DISPENSER · 200 l/min 268200300
  • Dim.: 800x540x1,500 mm (length x width x height)

STM
