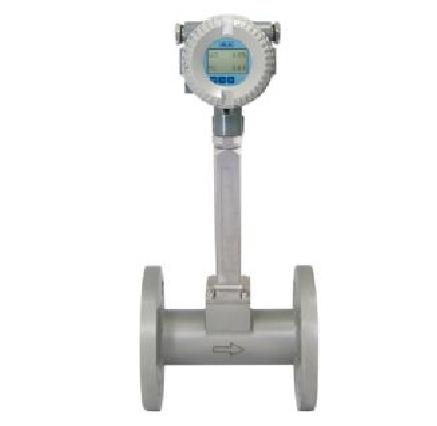

  • Đồng hồ đo lưu lượng hơi bão hòa AVF700NT
  • Giá:
    Liên hệ
  • Xuất xứ:
    Mỹ
  • Lượt xem:
    54987
Đồng hồ đo lưu lượng vortex, đo lưu lượng hơi được sản xuất trực tiếp tại mỹ với công nghệ của nhà sản xuất danh tiêng ALIA được chúng tôi cung cấp với chất lượng và giá thành phải chăng nhất.

Đồng hồ đo lưu lượng vortex, Đồng hồ đo lưu lượng hơi:

• Model AVF700NT
• Nhiệt độ: -40 - 250 độ C và -40 - 350 độ C.
• Áp suất làm việc: 16 bar, 25 bar, 40 bar...
• Màn hình: LCD hiển thị lưu lượng tức thời và tổng số lưu lượng. (2 loại:
loại màn hình hiển thị tích hợp hoặc loại gắn rời).
• Cấp bảo vệ: IP65/IP67/IP68
• Điện áp làm việc: 24 VDC, Battery.
• Ngõ ra: 4...20mA., Pulse...
• Truyền thông: HART Communication / Modbus Protocol
• Ứng dụng: Đo lưu lượng hơi nước, hơi bão hòa và hơi quá nhiệt.
• Model: AVF700NT
• Bảo hành: 18 tháng.
• Thời gian giao hàng: nhanh chóng trên toàn quốc.

FEATURES

Simplified setup and self-diagnostic functions
Auto. Temperature & Pressure compensation
4-20 mA and pulse outputs, user selectable
A very wide selection of sizes
Wide temperature range up to 420 Deg. C
Non-volatile memory for setup and calibration

SPECIFICATION
Đồng hồ đo lưu lượng vortex, Đồng hồ đo lưu lượng hơi:

Size: Local Display:
15,20,25,32,40,50,65,80,100,125,150 4 lines LCD
200,250,300,350,400,450,500mm 8 digit flowrate
Measuring Range: 8 digit Totalizer
Steam - 1.6 to 540,000 Kg/Hr Current Output:
Gas - 3 to 46,000 M3/Hr 4-20 mA (2 wire)
Liquid - 0.3 to 4950 M3/Hr Load
Material: 600
Stainless Steel 301 / 304 / 316 Pulse Output:
Accuracy Liquid: Scale Pulse (3 wire)
+/-0.7% value of reading Rating
Gas & Steam 3 to 30VDC, 20mA Max.
+/-1.0% value of reading Communication:
Unit: RS485(MODBUS Protocol)
m3/h,km3/h,l/min,kg/h,t/h Data Storage:
Repeatability: Operation parameter and totalizer
+/-0.2% value of reading figures are stored by EEPROM for more
Process Connection: than 10 years
Flange / Wafer Housing Material:
Flange type Aluminum Alloy
JIS 10K / JIS 20K / JIS 40K Cable Entry:
ANSI 150# / ANSI 300# / ANSI 600# Standard :M20 Option:1/2"NPTF
DIN PN 10 / PN 16 / PN25 / PN 40 Power supply:
Wafer type 12-36 VDC
DN40~DN250 Ni-MH Battery (3 years working Hours)
without Temperature / Pressure Sensor KeyPad:
Temperature: 4 internal keys for programming
-40 ~ +280 oC (Standard)
and display control
-40 ~ +420 oC (Optional)
Option:
Ambient Temperature: Pressure Sensor
-20 ~ +60 oC
Pressure compensation
Pressure: Signal output
78 Kg/cm2 (Max.) 0-30 mV DC (20 uA Power supply)
Protection Class: Temperature Sensor
IP 65 Temperature compensation
Explosion Proof, Exd IIC T6 Signal Output
Intrinsically Safe, Eex ia IIC T4 PT100 (3 wires)

Tags: đồng hồ đo lưu lượng hơi,
