  • Lưu lượng kế dạng phao Model EA
  • Giá:
    Liên hệ
  • Xuất xứ:
    Finland
  • Lượt xem:
    6523
Flow range (min./max.): Water: 0.002 / 2.5 L/min Air: 0.1 / 90 NL/min at +20°C / 1.013 bar (abs)



Overview

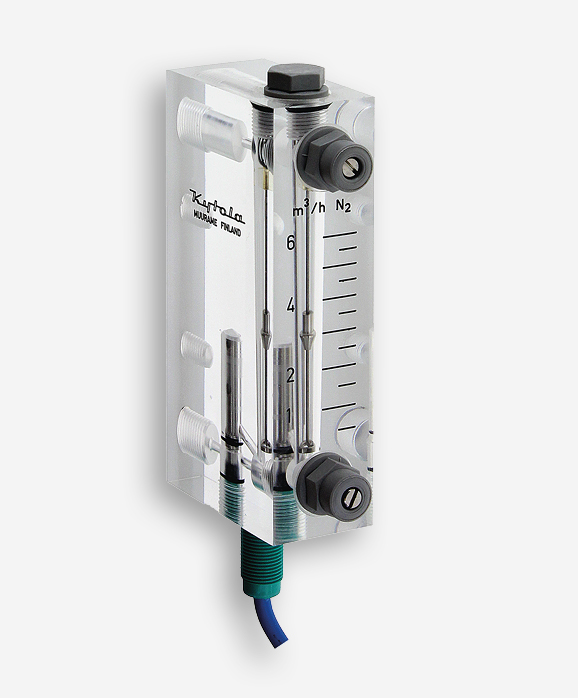

Variable area flow meter Model EA with adjustable flow alarm is designed for applications where continuous flow control is essential. The adjustable flow alarm and clear scale guarantees easy and reliable flow monitoring. Typical applications are heat treatment ovens and automatic welding lines.

Technical Data
Body   Acrylic (PMMA)
Valve housing/plugs    Nylon or AISI 316
Valve spindles   AISI 316
Alarm float   AISI 316
Seals         Nitrile (*Viton®, EPDM)
Max. pressure      10 bar
Max. temperature         75°C
Connections    BSP 1/4", thread adapters must be used for NPT connections
Accuracy      ± 5% F.S. (H2O, +20°C)
Alarm sensor NAMUR or PNP/NPN
Weight 360 g
*) Special construction on request
