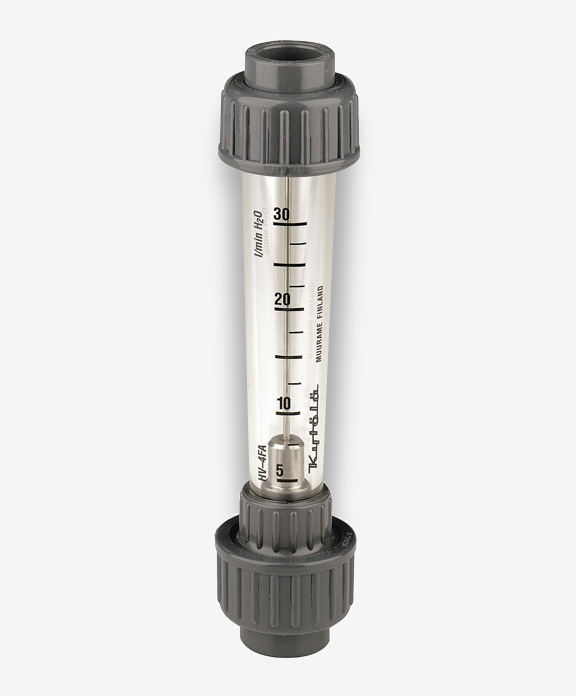

Model H is a reliable instrument for measuring and monitoring liquid and gas flows. Flow range (min./max.): Water: 10 / 375 L/min Air: 400 / 14000 NL/min at +20C / 101,3 kPa

FEATURES
Low cost
Large variety of flow ranges
TYPICAL APPLICATIONS
Process industry
Chemical industry
Water treatment plants
Flow measurement in PVC piping
General liquid and gas
measurement
OPTIONS
Scales for alternatve liquids and
gases
Special scale markings
Viton® or EPDM seals
Low and high flow alarm

HV TECHNICAL DATA
Model HV

Connecton size BSP/NPT 1/2” or 20 mm socket
Weight 120 g
Max. pressure 10 bar at 20°C (*10 bar at 80°C)
Max. temperature 50°C at 2 bar (*120°C at 2 bar)
Flow tube Grilamid (PA-12) (*PES)
Connectors PVC (*AISI 316, PVDF)
Float AISI 329 or AISI 329/PTFE (depending on range)


Seals Nitrile (*Viton®, EPDM)
Accuracy ±5% F.S. (H₂O +20°C) *Special constructon on request
