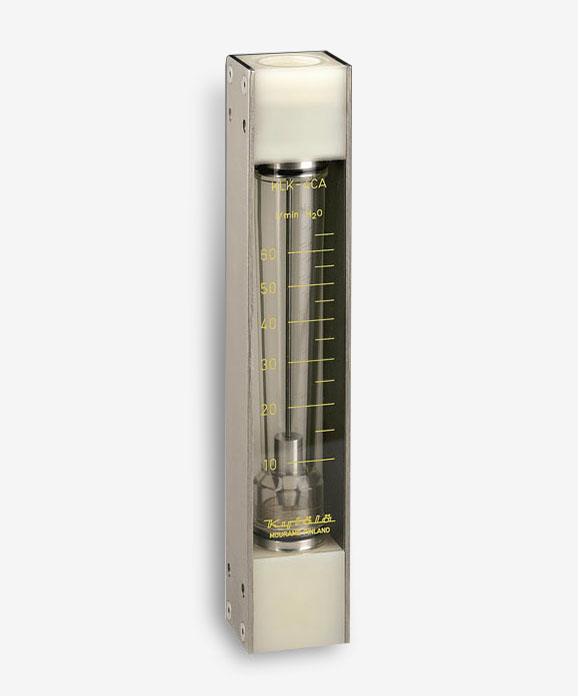

  • Lưu lượng kế dạng phao Model KL
  • Giá:
    Liên hệ
  • Xuất xứ:
    Finland
  • Lượt xem:
    3081
Flow range (min./max.): Water: 7.5 / 120 L/min Air: 200 / 3000 NL/min at +20C / 101,3 kPa



Overview

Variable area flow meter Model KL is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It comes in a range of different options and offers a choice of end blocks - aluminium, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are water treatment, oil measurements, and sealing water measurements of vacuum pumps.

Technical Data
Model    KLA-    KLH-     KLK-
Weight  1.9 kg 3.1 kg 1.4 kg
End blocks           Aluminium AISI 316 Nylon
Side plates AISI 316 AISI 316 AISI 316
Max. pressure          30 bar 30 bar 20 bar
Max. temperature     80°C (* 120°C)  80°C (* 120°C)  80°C
Flowtube Grilamid (PA-12) (* PES) Grilamid (PA-12) (* PES) Grilamid (PA-12) (* PES)
Connections   BSP 1" or NPT 1"  BSP 1" or NPT 1" BSP 1" or NPT 1"
Float AISI 329 AISI 329 AISI 329**
Seals Nitrile (* Viton®, EPDM) Nitrile (* Viton®, EPDM) Nitrile (* Viton®, EPDM)
Accuracy  ±5% F.S. (H2O, +20°C)  ±5% F.S. (H2O, +20°C) ±5% F.S. (H2O, +20°C)
*Alarm sensor     ILK-M30-BB (20 - 250 VAC/DC, 2-wire, NC)

ILK-M30-FR (10 - 55 VDC, 2-wire, NO/NC)

ILK-M30-N (Namur, DIN 19234)
*) Special construction on request **) Note! Other possible wetted metal parts: AISI 316
