SẢN PHẨM

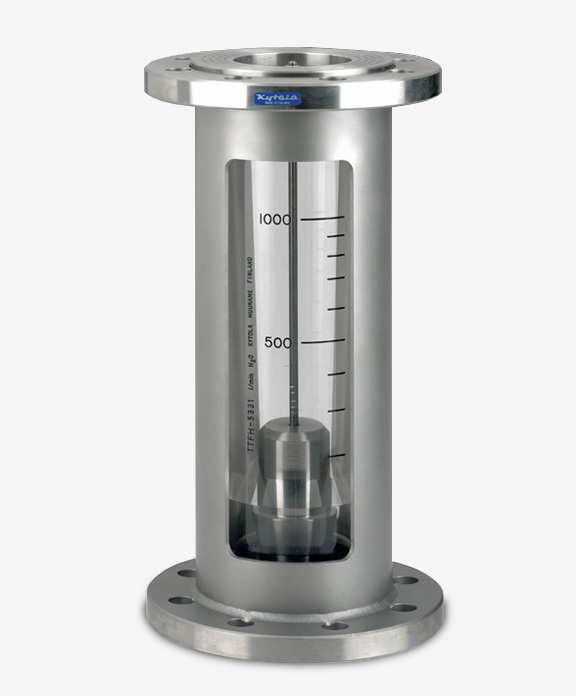

  • Lưu lượng kế dạng phao Model TT
  • Giá:
    Liên hệ
  • Xuất xứ:
    Finland
  • Lượt xem:
    4788
Flow range (min./max.): Water: 75 / 1000 L/min Model TTFH - TTFH Connections DN 80 Max. pressure 16 bar Max. temperature 75 °C Weight 17,5 kg Body AISI 316 Float AISI 329 Flowtube Acrylic Seals Nitrile (*Viton®, EPDM) Accuracy ± 5 % F.S.

Overview

Variable area flow meter Model TT is a sturdy industrial flow meter. It has a stainless steel AISI 316 body with an acrylic flow tube. It is a reliable instrument for measuring and monitoring large water flows. Typical applications are water treatment, power plants and swimming pools.

Technical Data
Connections DN 80
Max. pressure 16 bar
Max. temperature 75°C
Weight 17,5 kg
Body AISI 316
Float AISI 329 - Note! Other possible wetted metal parts: AISI 316
Flowtube Acrylic
Seals Nitrile (* Viton®, EPDM)
Accuracy ± 5 % F.S.
*) Special construction on request
