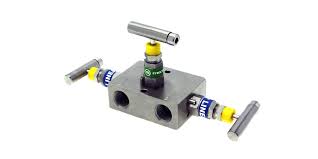

  • Manifolds MB type
  • Giá:
    Liên hệ
  • Xuất xứ:
    Tây Ban Nha
  • Lượt xem:
    64
MC series: Manifolds 420-430 BAR This family of Manifolds of standard design is one of our series of manifolds most requested by our customers. They generally stand out for their range of pressures due to the assembly of MC-type valves, with benefits that allow a service of up to 430 bar (6250 psi). Rating: - SS 316/L: 420 BAR (6000 PSI) - CARBON STEEL: 425 BAR (6170 PSI) - SS 904L: 425 BAR (6200 PSI) - DUPLEX: 430 BAR (6250 PSI) - SUPERDUPLEX: 430 BAR (6250 PSI) Maximum temperature: 350ºC / 662ºF Orifice: 3.75 (0.15 in) Stem tip: Ball, Needle Standard Construction material: INOX 316 / A.C. (For other materials see catalog "Special Materials") Packing: PTFE or Graphite Non-rotating valve: Elastic pin Design standard: ASME B31.1

CLASS: CL1500
RATING: 260 BAR / 3705 PSI
TEMP. MAX: 350ºC / 662ºF
ø [mm]: 3.75 mm / 0.15 in
SHUTTER: PM, PR, PB, BF
MATERIAL: INOX 316 / A.C.
HANDLE MATERIAL: INOX 304
STAMPED MATERIAL: PTFE, Graphite, Viton, PFA
AGAINST SEAT: YES
ESTELLITE + HASTELLOY: Consult
VALVE ANTI-ROTATION: Locknut
OPERATION LOCK (opt.): Consult
Design standard: ASME B31.1 / ASME B31.3
With PTFE packing Maximum temperature limited to 230ºC
The "Against Seat" function associated with PM AND BF shutters.
