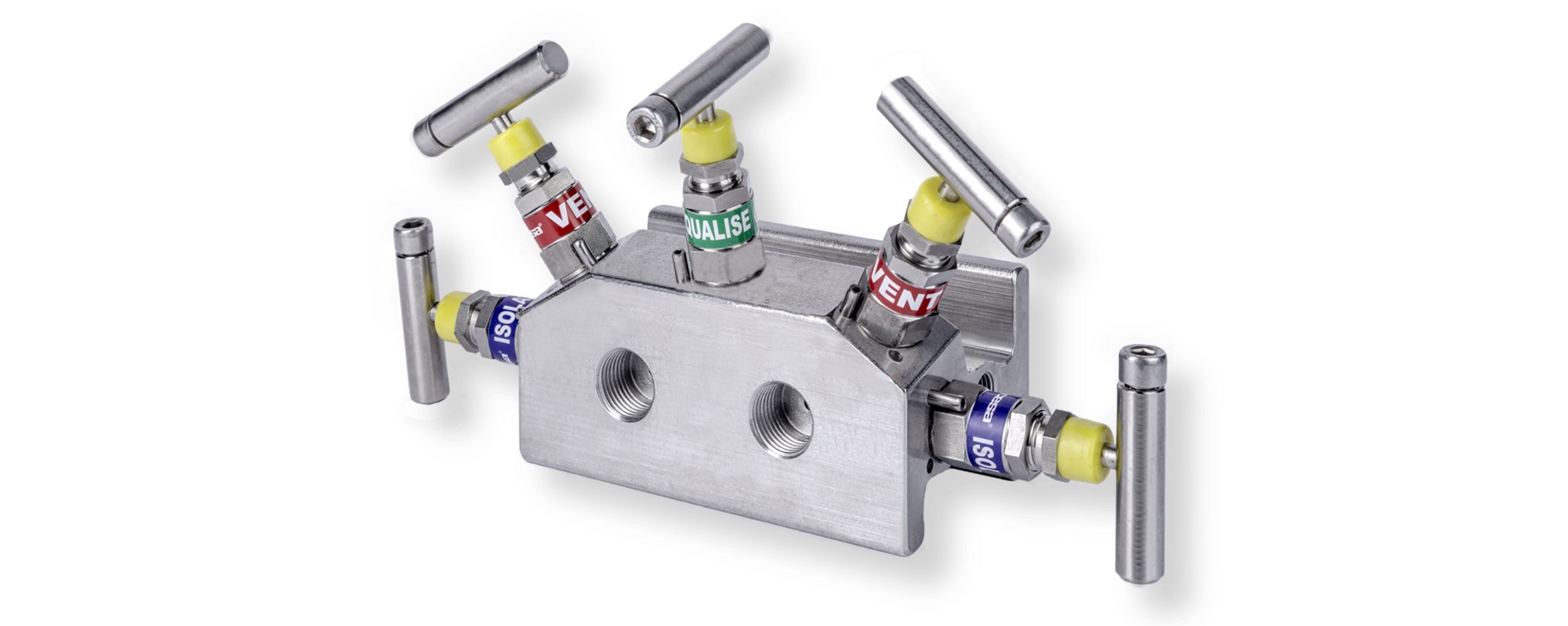

MC series: Manifolds 420-430 BAR

MC series: Manifolds 420-430 BAR

This family of Manifolds of standard design is one of our series of manifolds most requested by our customers. They generally stand out for their range of pressures due to the assembly of MC-type valves, with benefits that allow a service of up to 430 bar (6250 psi).

Rating:
SS 316/L: 420 BAR (6000 PSI)
CARBON STEEL: 425 BAR (6170 PSI)
SS 904L: 425 BAR (6200 PSI)
DUPLEX: 430 BAR (6250 PSI)
SUPERDUPLEX: 430 BAR (6250 PSI)

Maximum temperature: 350ºC / 662ºF
Orifice: 3.75 (0.15 in)
Stem tip: Ball, Needle
Standard Construction material: INOX 316 / A.C.
(For other materials see catalog "Special Materials")
Packing: PTFE or Graphite
Non-rotating valve: Elastic pin
Design standard: ASME B31.1


1 way 2 valves, threaded connection to transmitter, profile type (Ref. MC3-12)

Manifold for direct coupling to transmitter with H.1 / 2 "NPT inlet in the same Manifold body.

The transmitter is attached by means of four 7/16 "UNF screws (Length = 25) and two PTFE or Graphite gaskets

Coupling dimensions (DIN 19213)
Gasket and flange dimensions (MSS SP-99)
Screw 7/16 "UNF: Ref. 5CV-09435.004A for AC. STAINLESS STEEL Manifold, and Ref. 5CV-09435.054B for AC. CARBON
Gasket: Ref. 5CV-32055.301B for Manifold with PTFE packing, and Ref. 5CV-32055.029A for Manifold with GRAPHITE packing
Screws and gaskets supplied with the Manifold
