Measurement amplifiers SIKA force measurement systems generally consist of a combination of one or more sensors and a measurement amplifier. The sensors contain four internal strain gauges, each connected in a full-bridge circuit, as well as a compensative circuit. The electrical circuit conforms to the principle of the Wheatstone bridge. To provide the optimum solution for as many applications as possible and for every customer requirement, we offer a broad selection of measurement amplifiers. We offer our digital measurement amplifiers in numerous different versions: As a box or version for top-hat rail mounting for PC-based signal processing. As built-in devices with a front bezel and integrated display for direct indication. These devices are not only equipped with a display for the measured values, but also with extensive functions and options for further signal processing. Our USB measurement amplifier is not only technically extremely comprehensive, but also easy to install and operate. The integrated software allows sensors to be configured and the measured values to be recorded. As well as the mV / V signals from the force sensors and load cells, signals from other sensors can also be processed (analogue standard signals, impulses, torque, temperature, distance). Our compact display units are particularly popular for mobile applications. These units are battery-powered and feature an integrated display along with configuration options. We also supply analogue measurement amplifiers, which convert the sensor signal into an analogue standard signal. This can be further processed by a PLC, for example. Analogue measurement amplifiers enable quick and easy configuration of the sensors.

We also supply analogue measurement amplifiers, which convert the sensor signal into an analogue standard signal. This can be further processed by a PLC, for example. Analogue measurement amplifiers enable quick and easy configuration of the sensors.





Analogue measurement amplifier type FTA4/2

  • Accuracy
     < 0,02 %
  • Output response time
    1 ms







Digital measurement amplifier type FTA5F

  • Accuracy
     < 0,01 %
  • Resolution (2 mV / V)
    ±200 000 steps
  • Sampling rate
    Max. 300 Hz (filter = 0)








Digital measurement amplifier type FMP1

  • Accuracy
     < 0,05 %
  • Resolution (2 mV / V)
    ±9999 steps
  • Sampling rate
    Max. 300 Hz (filter = 0)
  • Peak-hold function







Digital measurement amplifier type FMP2E

  • Accuracy
     < 0,01 %
  • Resolution (2 mV / V)
    ±50 000 steps
  • Sampling rate
    Max. 160 Hz (filter = 0)
  • Peak-hold function








Digital measurement amplifier type FTA2USB

  • Accuracy
     < 0,01 %
  • Resolution (2 mV / V)
    ±50 000 steps
  • Sampling rate
    5...4800 Hz

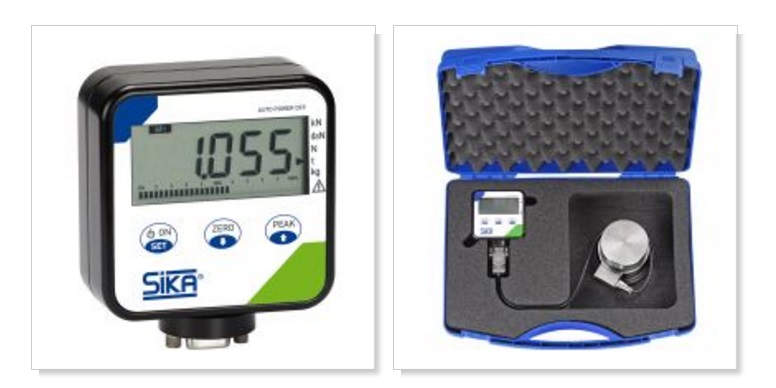

Compact display unit type FDFI / FDFX

  • Accuracy
    < 0,02 % (FDFI)
    < 0,04 % (FDFX)
  • Resolution (2 mV / V)
    ±25 000 steps
  • Sampling rate
    Max. 10 Hz (filter = 0)
  • Peak-hold function











Compact display unit type FPMA

  • Accuracy
    < 0.010 %
  • Resolution (2 mV / V)
    ±50 000 steps
  • Sampling rate
    5...4800 Hz
