  • Metal tube flow meter
  • Giá:
    Liên hệ
  • Xuất xứ:
    Finland
  • Lượt xem:
    1635
Flow range (min./max.): Water: 0.015 / 6.5 L/min Air: 0.5 / 200 NL/min at +20C / 101,3 kPa

Overview

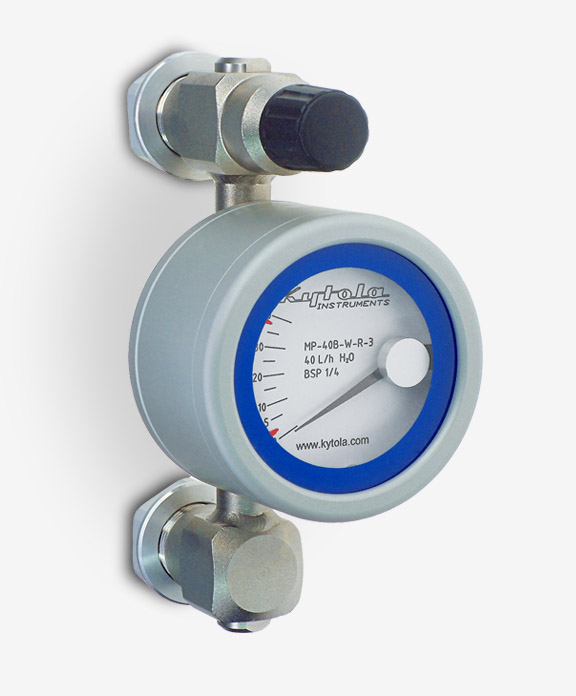

Metal Tube flow meter model MP is a compact flow meter with AISI 316L stainless steel parts. It is designed to withstand high pressure, temperature and aggressive media. It is compatible for a wide range of liquids or gases. Its reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float. Typical applications are chemical and petrochemical industries, power plants and general flow measurements.

Technical data
Flow tube     Stainless Steel AISI 316L
Connectors Stainless Steel AISI 316L
Float Stainless Steel AISI 316L
Display housing Aluminium (*Stainless Steel AISI 316L)
Housing window Polycarbonate (*Borosilicate glass)
Seals Viton® (*EPDM)
Maximum pressure  100 bar
Maximum temperature   +100°C with alarms / +150°C without alarms
Connections BSP / NPT / BSPT 1/4" or 1/2" (depending on range)
Weight   920g
*) Special construction on request
