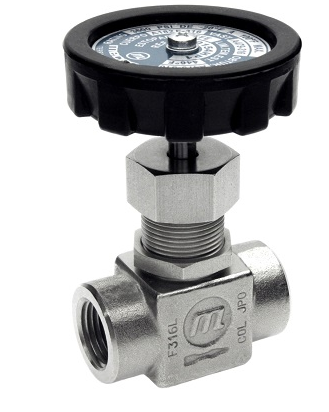

Needle and regulation valves Megaldap®

CHARACTERISTICS:
MxT MEGALDAP VALVES
MAX. PRESSURE OF UP TO 3.705 PSI (260 BAR)

Series:
- Without purge: M23 (orifice ø4.5), M24 (orifice ø6.5), M25 (orifice ø8).
- With purge: V23 (orifice ø4.5), V24 (orifice ø6.5), V25 (orifice ø8).
For see the orifices to different valve dimensions (see information).

Connections: To various standards, from 1/8” to 1/2” in NPT (ASME B1.20.1), BSPT (ISO 7R) and B.W. (Butt Welding), in tubing connections: MEGALOK® compression tube ends.

Materials:
Manufacture materials STAINLESS STEEL Grade 316, CARBON STEEL and BRASS.
PTFE Packing (Under order they can be supplied with GRAPHITE packing).
Stem of STAINLESS STEEL Grade 316 in all the versions.
Handwheel of POLIAMIDA 6.

Handwheel in Black colour for vee stem and Red for regulation stem (Under order they can be supplied with handle).

Stem: It is supplied with vee stem or regulation type.

Rating:
According to material and connections (see information).
