  • Series 6000
  • Giá:
    Liên hệ
  • Xuất xứ:
    Tây Ban Nha
  • Lượt xem:
    105

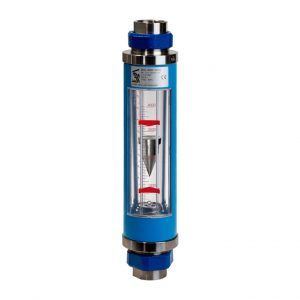

Variable area flowmeters with glass tube. Easy installation without straight pipe run required and protected against accidental breakage.

Technical specifications

Measuring range
  • 2,5 l/h … 40 m3/h H2O
  • 40 Nl/h … 1200 Nm3/h air
Accuracy
  • ±1,6% f.s.
Connections
  • DIN DN15 … DN80 flanges
  • Threaded fittings from ½” … 3” BSP
  • PVC solvent weld socket fittings
  • SS fittings for welding, others on request
Materials
  • Flow tubes: borosilicate glass, length 300 mm
  • Wetted parts: Coated steel, EN 1.4404 (SS316L), PVC, PP, PTFE
Options
  • 1 or 2 adjustable switches (reed switch, micro-switch or inductive sensor)
  • 4-20 mA transmitter (max. resolution 18 points)
  • HART ™ protocol, Profibus, Fieldbus on request
